Guide for setting up DMX e1.11 / DMX 1990 / RS485 Connections to HolidayCoro Controllers AlphaPix HinksPix PRO
This page provides information about wiring colors, pin/screw terminal locations for HolidayCoro controllers and devices that use E1.11 or "DMX 1990" signals.
HolidayCoro devices that use CAT5 wire for DMX signals (excluding E1.31 devices) are intended to be wired using pins 1 and 2 of CAT5 wiring (568B) for their RS485 DMX input signal.
If you are using the Entec Pro/Open, LOR Dongle or LOR iDMX-1000 as an output for your DMX signal, you will need to build an adapter cable using the instructions below or you can purchase our ActiDongle which includes XLR 3 Pin and CAT5 outputs.
| | CAT5 - Pin 1 / RJ45 Orange + White (568B Standard) RS-485 Positive | CAT5 - Pin 2 / RJ45 Solid Orange (568B Standard) RS-485 Negative | Configuration Video | |

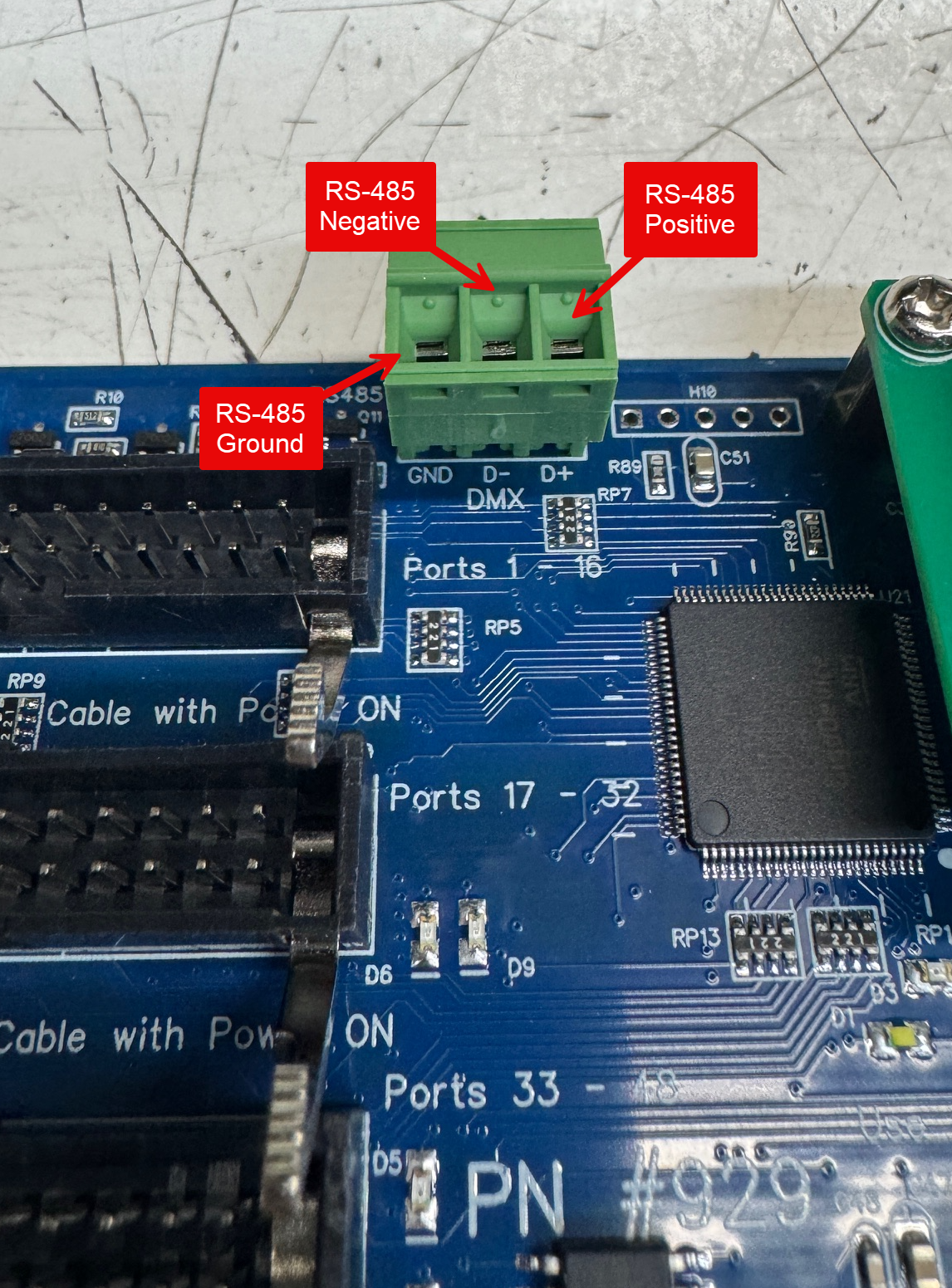

HinksPix PRO V1 #925  | HinksPix PRO V2 #929 | Right Hole | Middle Hole | |

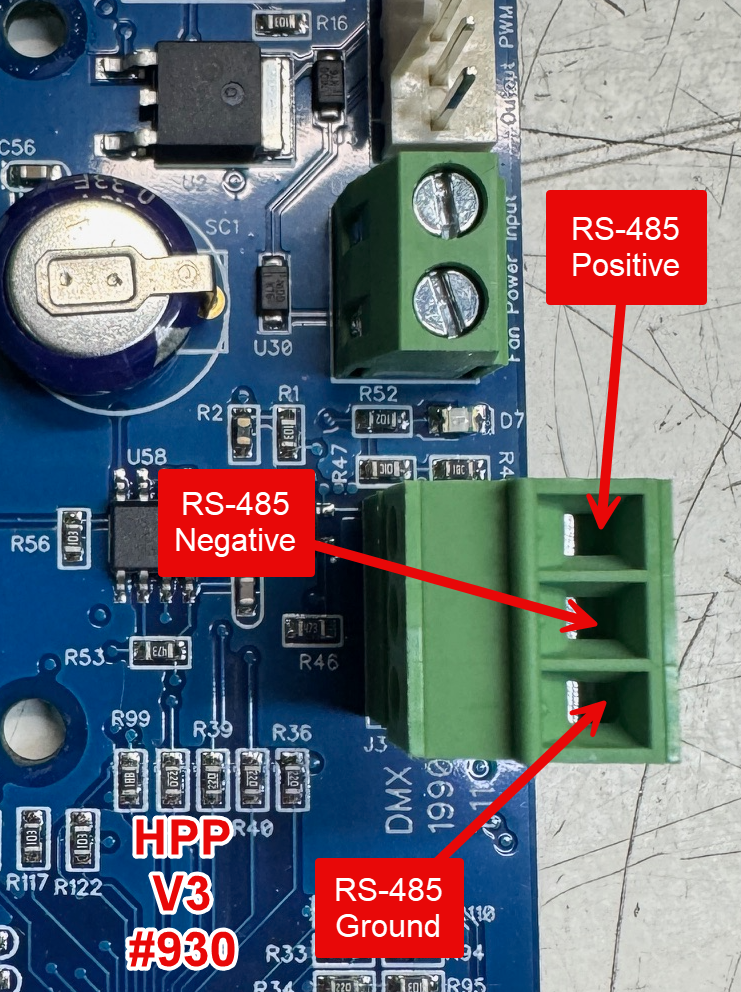

HinksPix PRO V3 #930 | Top Hole | Middle Hole | ||

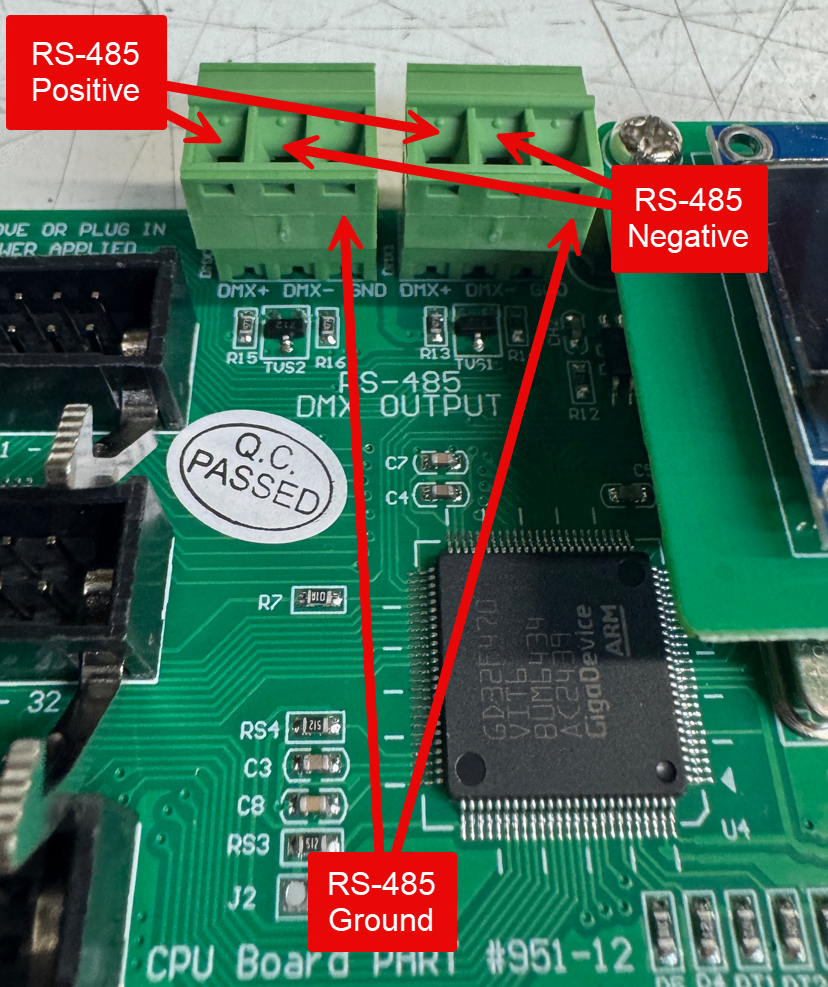

AlphaPix Evolution #951-11 / 951-12 | Left Holes (both plugs) | Middle Holes (both plugs) | ||
AlphaPix Classic 16 V1 / V2 / V3 #721-V3  | See Photo | See Photo | ||

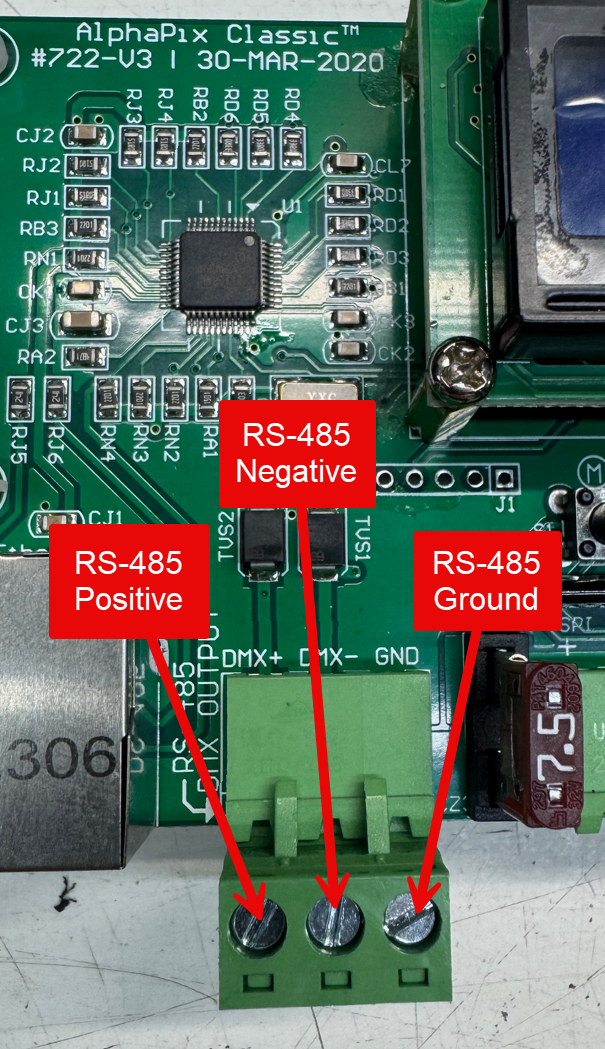

AlphaPix Classic 4 V1 / V2 / V3 #722-V3 | Left | Middle | ||
| HolidayCoro EasyPix Controller #614  | --> DMX + | --> DMX - | N/A | |
| HolidayCoro 3 Pin DMX Controller White Box / DIP Switch Unit Product #27  Black Ground wire can be left unconnected | Red Wire | Green Wire | N/A | |
| HolidayCoro AlphaPix E1.31 Pixel Controllers - See this article about AlphaPix and RS485 ports | | |||
| XLR - 3 Pin Plug Used in the following types of devices HolidayCoro 30 Channel DMX Controller Light-O-Rama iDMX-1000 Any other DMX controller or output device with 3 PIN XLR Plugs (see diagram below) | | | N/A | |
|
| ||||
| XLR - 5 Pin Plug - Used in the following types of devices Enttec Pro DMX Output Device Enttec Open DMX Output Device DMX King Output Devices Any other DMX controller or output device with 5 Pin XLR plugs | | | N/A | |
|
| ||||
| LOR RS-485 "Dongles" - USB485 (Short Range) - USB-RS485 Adapter with Booster - RS485 Network Repeater - USB-RS485 Isolated Adapter (see diagram below) | CAT5 - Pin 4 / RJ45 Solid Blue (568B Standard) | CAT5 - Pin 5 / RJ45 Blue + White (568B Standard) | See this page for ActiDongle Setup | |
 NOTE: Be sure to mark the "Standard DMX" and "LOR DMX" controller sides as this cable cannot be reversed | N/A | |||
